Working with Virtual Machine Scale Sets

Working with Virtual Machine Scale Sets

#380920

Azure VM Scale Set (VM Scale Set) let you create and manage a group of load balanced VMs. The number of VM instances can be automatically increased or decreased in response to demand or on a defined schedule. Densify analyzes your VM Scale Sets and provides optimization recommendations.

When working with VM Scale Sets note the following:

  • Virtual machine instances that belong to a scale set are logically considered to be part of the VM Scale Set service entity and recommendations are made for the group and not for the individual instances.
  • VM Scale Sets configured with maximum group size = 1, are treated as VMs and are only included in the Virtual Machine tab, while VM Scale Sets configured with maximum group size > 1, are shown on the VM Scale Set tab.
  • Densify cannot analyze VM Scale Sets configured with their orchestration mode = Flexible. However, a flexible scale configured to run on one instance type can be analyzed. See Working with Virtual Machine Scale Sets.
  • Azure provides memory metrics during data collection. If for some reason, memory data is not available, memory utilization of the parent AKS service will be used and if that data is also not available, the backfill memory settings will be used for the analysis. See VM Scale Set Backfilling Memory.
  • The Impact Analysis and Recommendation Report report is not currently available for VM Scale Sets with maximum size >1. Also note the following feature support:

    • Table: Feature Support for VM Scale Set

    Feature

    VM Scale Set with Max Size=1

    VM Scale Set with Max Size>1

    Impact Analysis and Recommendation Report for both UI and API

    Available in 2.4.0

    Future Release

    Catalog Map

    Available in 2.4.0

    Future Release

    Metrics Viewer

    Future Release

    Future Release

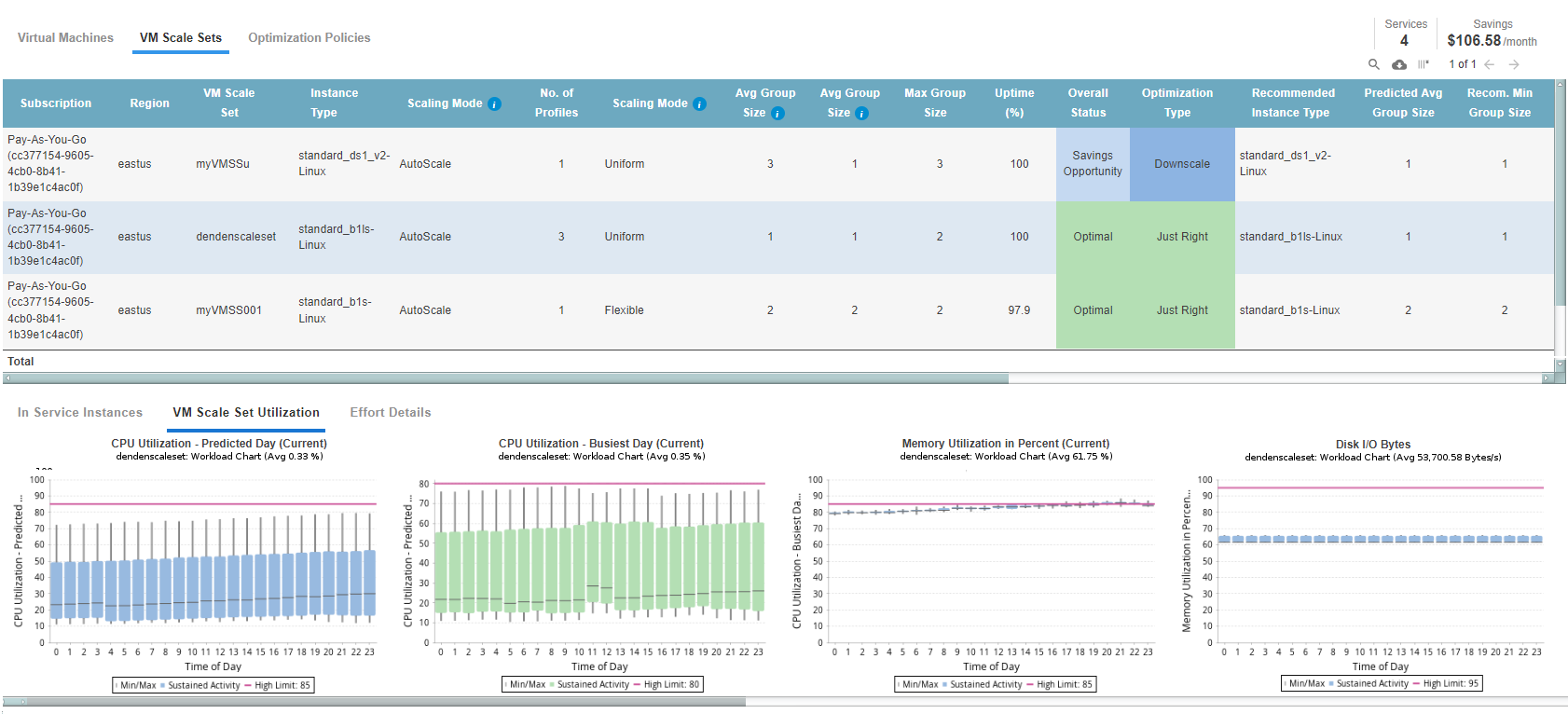

The VM Scale Setoptimization opportunity report is divided into two sections:

  • The tabular report in the upper pane, shows details of each VM Scale Set and the recommendations.
  • Tabs in the lower pane display the selected VM Scale Set's scaling activity and resource utilization details. A third tab shows the effort required to implement the recommendation.

Data Controls

The controls, in the upper right corner of the page, provide options for managing and viewing your data more effectively.

Watch the video for an overview of the data management features:

Table: VM Scale Set Data Controls

Icon

Description


Allows you to search for any type of data in the displayed columns. i.e. for a specific account or VM Scale Set. Typically, you will search for items in the first column, but you can search for a value in any column.

Click the icon and enter your search string. All matching rows are displayed in the table. You must enter a string of alpha-numeric characters. Wildcards are not supported.

If there are multiple pages, all pages are searched for the matching string.

Click this icon to export the content of the currently displayed table to .CSV format.


Click this icon to configure the table to display only the columns of interest. The default settings are re-applied when you navigate away from this page.

If there are more than 30 rows in this table, multiple pages will be indicated here. Click the right/left arrows to move to the next/previous page of a multi-page report.

You will see a vertical scroll bar if all 30 rows cannot be displayed.

Sorting Tabular Data

By default, the table is sorted by Efficiency Rating. This is still the case even if you select another Group By option. You can sort the content of this table using any of the available columns, by clicking the column header.

  1. Click the column header to sort the table, in ascending order, using the content of the selected table as the sort key.
  2. Click the column header again, to sort the table, in descending order, again using the content of the selected table as the sort key.
  3. Click the column header a third time to clear the sort and return to the default, sorted by Efficiency Rating.

    4. An up/down arrow is displayed in the column header to indicate the column is being used to sort the content of the table.

    Sorting is not persistent between pages or login sessions and this feature is only available on the Data tab.

VM Scale Set Tabular Report Sorting

The VM Scale Set tabular report is ordered based on the following sorting keys:

Table: VM Scale Set Sort Key Priority

Sort Key

Description

1. Overall Status

The VM Scale Sets are first sorted by Overall Status, in the following order:

  1. Savings Opportunity
  2. Optimal
  3. Identified Risk

2. Working with Virtual Machine Scale Sets

If the Overall Status is the same, then the secondary sort key is Optimization Type. services are sorted by Optimization Type in the following order:

  1. Terminate
  2. Modernize
  3. Modernize - Optimal Family
  4. Downscale
  5. Downsize
  1. Downsize - Optimal Family
  2. Just Right
  3. Upscale
  4. Upsize
  5. Upsize - Optimal Family

3. Working with Virtual Machine Scale Sets

If Overall Status and Optimization Type are the same, then the tertiary sort key is the Account number, in ascending order.

4. Working with Virtual Machine Scale Sets name

If all of the above sort keys are the same, then the final sorting is done by the name, in ascending, alphabetical order.

Filtering by Recommendation

You can filter the optimization tabular report based on recommendations using the Recommendation Filter Menu. This filter allows you to narrow the results of your report based on overall status, optimization type, effort required and whether or not the recommendation should be deferred. For details, see Using the Recommendation Filter Menu.

The guest filter is not supported for VM Scale Sets.

Mixed Mode Services

Densify cannot analyze VM Scale Set with a set of mixed instance types i.e. VM Scale Set configured with Orchestration Mode = Flexible. However, a scale set with Orchestration Mode = Flexible, can still be configured to run on one instance type and Densify can analyze these services.

Densify checks the VM Scale Set to determine if it is actually configured to run a mix of instance types or to run on a single instance type. Mixed groups are tagged by setting the attribute, "Mixed Instance Policy Set" to True and these scale sets are filtered from the analysis using the Cloud Environment filter.

Additionally, Densify detects mixed instance configurations that result from changes to the launch configuration/scale set model. When the configuration of a VM Scale Set changes then in the event of scale out, new instances are created based on the new configuration, while the existing child instances continue to run with the previous configuration.

In the event of a scale in, VM Scale Sets are typically set to favour terminating instances created via the old launch template. This behaviour may also result in a mix of instance types.

Densify detects these changes and excludes services where the configuration of the scale set has changed but the running child-instances have not been affected.

Tabular Data

The tabular report displays the current and recommended instance sizing and cost details for each VM Scale Set.

Recommended group sizing associated with downscaling or upscaling the VM Scale Set are included. See the Working with Virtual Machine Scale Sets or the Working with Virtual Machine Scale Sets columns for the recommended sizing. Refer to VM Scale Set Optimization Opportunity Report Details for column descriptions.

Reviewing Specific Instance Details

The bottom pane of the VM Scale Set report provides the following information for the row, selected in the tabular report:

  • In Service Instances—Shows workload charts for current and recommended predicted scaling activities for the selected VM Scale Set. For VM Scale Sets identified with optimization type="Just Right" or "Terminate", only the current in-service scaling activity chart is displayed.
  • VM Scale Set Utilization —Shows charts for current and recommended CPU Utilization and Memory Utilization for the selected VM Scale Set. Network I/O, Disk I/O workload charts are also included, showing utilization at the VM Scale Set level. You can view workload charts for each group member from the Working with Virtual Machine Scale Sets page.
  • Effort Details Tab—This table lists the factors that contribute to the effort required to investigate and implement the Densify recommendations. Effort for each group is calculated by rule-driven analytics based on factors (such as instance family change, data quality checks, feature changes, etc.) that can be configured in the policy settings and through analysis rule sets. A description of each rule is provided.

VM Scale Set Optimization Opportunity Report Details

Table: VM Scale Set Optimization Opportunity Report Details

Column Name

Description

Subscription

The Azure account containing the VM Scale Set.

Region

The region containing the VM Scale Set.

Availability Zone

The availability zone containing the VM Scale Set. The AZ corresponds to a geographic region.

This column is hidden by default. You can enable it for display, as required. See Data Controls, above.

VM Scale Set

The VM Scale Set name, discovered during data collection.

System ID

A unique key assigned by the public cloud vendors to identify this instance.

This column is hidden by default. You can enable it for display, as required. See Data Controls, above.

Kubernetes Cluster

This column indicates the name of the AKS cluster managing the VM Scale Set.

If the required data is available the Densify analysis can determine if the VM Scale Set is sized correctly to satisfy all of the container reservation requests.

If the selected scale set is hosting a Kubernetes cluster and the AKS Reference, is not displayed here, you may need to collect additional data by deploying the Densify data forwarder into this cluster. Contact [email protected] for details.

Note: This column is visible only if the VM Scale Set is hosting an AKS cluster.

Instance Type

The current catalog instance is listed. This value is based on the data collected.

Scaling Mode

The scaling mode applied to this VM Scale Set. The scaling mode can be one of manual or autoscale. If the VM Scale Set is currently running in manual mode, consider changing it to autoscale mode.

The proposed recommended instance type, minimum and maximum group size are based on scaling mode being set to autoscale.

No. of Profiles

The number of profiles associated with the selected VM Scale Set. Profiles are only applicable to scale sets with scaling mode=Autoscale.

By default, scale sets with orchestration mode=Uniform are created with one scaling profile. Multiple profiles can be used to scale in different ways at different times. If for example, your workloads are inactive on some weekends, a recurring profile to scale in resources can be applied.

Orchestration Mode

The orchestration mode applied to this VM Scale Set. The orchestration mode can be one of Uniform or Flexible.

Only Uniform scale sets, or Flexible scale sets running identical instance types are analyzed. See Mixed Mode Services for details.

The proposed recommended instance type, minimum and maximum group size are based on the orchestration mode being set to uniform.

Avg Group Size

The average instance count when the VM Scale Set is running.

Min Group Size

The minimum number of instances/hour.

When configured to autoscale, this value is the minimum of all the profiles associated with the selected VM Scale Set.

When configured to scale manually, this is the minimum number of instances found during the historical period that is used for the analysis.

Max Group Size

This is the maximum number of instances/hour.

When configured to autoscale this value is the maximum of all the profiles associated with the selected VM Scale Set.

When configured to scale manually, this is the maximum number of instances found during the historical period that is used for the analysis. The historical period is defined by the policy setting, (Workload range)

Uptime (%)

The Predicted_uptime%, and not the observed uptime percent.

When using pay-per-use pricing models, the amount of time each instance has been running, is required to accurately estimate future costs.

The predicted uptime (%) for a cloud instance or container, is based on the percentage of hours CPU utilization data is present in the historical interval, as specified in the policy settings for the entity. For Auto Scaling groups and VM Scale Sets and Individual child instances are not taken into account.

Predicted uptime %, for new instances or containers, that started mid-way through the historical interval, is calculated from the time/date that the instance was started as opposed to the beginning of the interval, resulting in more accurate predictions for future usage.

For example, the uptime is the number of hours that have "CPU Utilization in mcores", and the range is the lesser of when the container was discovered, or the range defined in the policy. Looking at a specific container that was discovered on Jan 5th 2024, that has workload of 42 hours since that date, then the uptime % is 42 hrs/(13 days x 24 hrs/day) = 13.4%. This is the value shown in this column.

Total Hrs

The total number of hours since the VM Scale Set was created.

This column is hidden by default. You can enable it for display, as required. See Data Controls, above.

Running Hrs

The number of hours that the VM Scale Set has been running.

Both Total Hrs and Running Hrs are restricted by the historical time range defined in the policy (i.e. 60d history).

This column is hidden by default. You can enable it for display, as required. See Data Controls, above.

Overall Status

Identifies the overall status of the optimization results based on Optimization Type and potential Net Savings ($/Month) :

Optimal

These instance types are currently sized correctly and there are no costs savings for this group of systems.

Identified Risk

These instance types are at risk. This status occurs when the savings amount is less than $0 (i.e. you need to spend money to mitigate risk).

Identified Risk status is also indicated when the savings amount is $0, but optimization type is upscale, upsize, or upsize to optimal family. This situation occurs when services are inactive, however, they will need to be upscaled or upsized to mitigate risk when they resume activity.

Savings Opportunity

These instance types can provide saving opportunities that greater than $0.

Savings opportunity status is also indicated when the savings amount is $0, but optimization type is terminate, modernize, modernize to optimal family, downscale, downsize, or downsize to optimal family. This situation occurs when services are inactive, but have a recommendation of terminate, modernize, downsize or downscale when they resume activity to save money.

Optimization Type

The recommended action for the group of instances. See Optimization Type Descriptions and Color-Coding for a description of each recommendation.

Recommended Instance Type

This is the recommended catalog instance, based on optimization analysis.

Predicted Avg Group Size

The predicted average instance count on the recommended instance type.

Recom. Min Group Size

The minimum number of instances recommended for the scale group.

Recom. Max Group Size

The maximum number of instances recommended for the scale group.

Scaling Policies

This value indicates whether the scaling mode needs to be reviewed. Possible values depend on whether or not the VM Scale Set is managed by AKS:

  • VM Scale Set is managed by an AKS cluster:
    • No Value- If the optimization type = Terminate, then:
      • In the UI, a dash, "—" is displayed.
      • In the API,"Terminate" is returned in the /results.
    • Keep—If the current average group size is the same as the recommended average group size. The optimization type =Just Right.
    • Review—If Densify recommends changing one or more of instance type, average, minimum or maximum group size.
  • VM Scale Set is NOT managed by an AKS cluster:
    • No Value- If the optimization type = Terminate, then:
      • In the UI, a dash, "—" is displayed.
      • In the API,"Terminate" is returned in the /results.
    • Keep—If the current average group size, minimum and maximum group size are not changed. The optimization type =Just Right.
    • Review—If Densify recommends changing one or more of instance type, average, minimum or maximum group.
    • Enable Autoscale—If Densify recommends changing one or more of instance type, average, minimum or maximum group size and the VM Scale Set is not managed by AKS.
    • Adjust —If the current average group size is not the same as the predicted average group size AND instance type and minimum and maximum group size do not change AND the VM Scale Set is not managed by AKS.

Note: This element is only returned for VM Scale Sets with maximum group size greater than one.

Net Savings ($/Month)

The estimated cost savings per month. The predicted average instance counts, the instance type cost and predicted uptime are used to calculate the current and recommended estimated cost.

The savings are calculated as the current estimated cost minus the recommended estimated cost.

Effort

[ High | Medium | Low | None ]

This column describes the effort required to investigate and implement the Densify recommendations. The displayed group effort is an average of all the calculated efforts for each instance (or service) in the group. Effort for each instance is calculated by rule-driven analytics based on factors (such as family change, storage change, data quality checks, feature changes, etc.) that can be configured in the policy settings and rule set which captures best practices.

See the Effort Details tab in the lower pane for additional effort details for the selected VM Scale Set.

There will be an impact to the effort value for VM Scale Sets, hosting a Kubernetes cluster that not linked with a AKS reference (i.e. has no parent identified).

Current CPU

The CPU allocation for the current instance type. This value is for a single instance and is not multiplied by the average number of instances.

This column is hidden by default. You can enable it for display, as required. See Data Controls, above.

Recommended CPU

The CPU allocation for the recommended instance type. This value is for a single instance and is not mulitplied by the average number of instances.

This column is hidden by default. You can enable it for display, as required. See Data Controls, above.

Current CPU Benchmark

The CPU benchmark value for the current instance type.

This column is hidden by default. You can enable it for display, as required. See Data Controls, above.

Recommended CPU Benchmark

The CPU benchmark value for the recommended instance type.

This column is hidden by default. You can enable it for display, as required. See Data Controls, above.

Current Memory Allocation (GB)

The memory allocation for the current instance type. This value is for a single instance and is not mulitplied by the average number of instances.

This column is hidden by default. You can enable it for display, as required. See Data Controls, above.

Recommended Memory Allocation (GB)

The memory allocation for the recommended instance type. This value is for a single instance and is not mulitplied by the average number of instances.

This column is hidden by default. You can enable it for display, as required. See Data Controls, above.

Instance Type Updated On

A value in this column indicates the instance type (cloud) or instance request/limit values (container) has been change recently.

The workload for this instance, on which the recommendation is based, includes only the days of data from the indicated date to the current date. All historical data for this instance, collected prior to the indicated date is not included in the analysis. Previous data has been excluded because it was based on the previous instance type (cloud) or instance request/limit values (container).

A blank cell indicates the current instance type has not changed and all available workload data within the range, defined by the policy, has been used to generate the recommendation.

Contact [email protected] to enable this feature. See Relearning Workload Patterns for more details.

This column is hidden by default. You can enable it for display, as required. See Data Controls, above.

Total Savings ($/Month)

Total savings based on making all of the recommended changes. This is the sum of all net monthly savings. If the number of VM Scale Sets spans multiple pages this is the total for all pages.

Exporting the VM Scale Set Optimization Opportunity Report

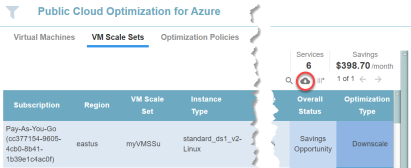

  1. Click the download CSV icon to export the content of the VM Scale Set dashboard to a .CSV file.

    2. The VM Scale Set Summary report contains the tabular list of VM Scale Sets from the optimization opportunity tabular list view. All selected filtering options are applied to the exported data

  2. Locate and open your download folder to see your exported data.

Additional Considerations for VM Scale Set Recommendations

AKS-aware VM Scale Set Recommendations

VM Scale Sets and their virtual machine group members are loaded from Azure cloud data collection audits and Kubernetes entities are collected via the Densify data forwarder from Prometheus data. Linking these entities is extremely complex.

A single Kubernetes cluster can run on one or more VM Scale Set with each VM Scale Set running in a node group within the cluster; however it is possible to skip node groups, and in this case the VM Scale Set must be linked directly to the cluster entity.

Densify uses the parent resource group and its tags to match the entities and VM Scale Set recommendations are made based on the established AKS-VM Scale Set associations.

VM Scale Set Backfilling Memory

Memory metrics are available for Azure instances when using the standard Densify audit. If, for some reason, you are not collecting memory metrics, Densify provides a method to simulate memory utilization using backfill memory policy settings. Contact [email protected] for details.
